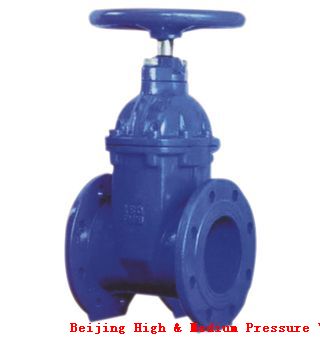

| Product Name：Z45X Cast iron Gate valve |
| Product Classification：Gate valves |
| Product Introduction： |
I plant the introduction of European high-tech manufacturing techniques valve seat seal gate valve flexibility, the use of plastic deformation gate the overall compensation package role to achieve a good sealing effect, to overcome the generally bad valve seals, leaking and rusting phenomenon. Can be widely used for water, sewage, construction, petroleum, chemical, food, pharmaceutical, textile, electric power, shipbuilding, metallurgy, energy systems, fluid lines and the closure as a conditioning device.
|
|
| Description |
Parameters |
Size Chart |
Application |
|
| Standard and Standard |
| 1.Connection flange according to GB17241.6-1998 |
| 2.The structure according to the length of GB/T12221-1989 |
| 3.Valve inspection and testing by GB/T13927-1992 |
| 4.Connection flange according to JB/T79-1994 |
| |
| Feature |
| Norminal Pressure:1.0-1.6Mpa |
| Normina lDiameter:30-500mm |
| suitable media:water ,gas ,oil,Non-corrosive fluids |
| | |
| mian materials |
| gate body |
Gray Cast iron,Ductile iron, |
| gate Disc |
Ductile iron with EPDM or NBR in surface |
| hexagon bolt |
Carbonation |
| seat ring |
NBR |
| Bonnet |
Gray Cast iron,Ductile iron |
| Stem |
2Cr13 |
| O-ring packing |
NBR |
| block bearing |
Bronze |
| Bolt |
2Cr13 |
| Gland |
Ductile iron or cast Steel |
| handwheel |
Cast iron |
| |
|

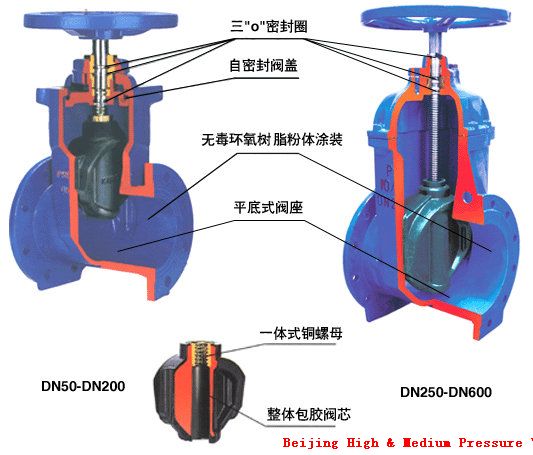

產(chǎn)品外形及結(jié)構(gòu)尺寸示意圖
 |
Schematic diagram of the product shape and structure size
1, hand wheels, handles and drive mechanism for lifting are not allowed to use, and non-collision.
2, Gate Valve should be installed vertically (ie, stem in a vertical position, the hand wheel at the top).
3, the valve with a bypass valve opens the bypass valve in the open should be preceded by (in order to balance the import and export of pressure and reduce opening force).
4, with the valve drive mechanism, according to the provisions of the product installation instructions.
5, if the valve often used switches, lubrication at least once a month
|
|
