| Product Name：Two-phase flow wafer slag valve |
| Product Classification：Bellows valves |
| Product Introduction： |
1 medium: water mixture residue, air-water mixture,
(2) Temperature: <400 ℃
3 nominal pressure :1.0-1 .6 mpa
4 nominal diameter :40-600mm
|
|
| Description |

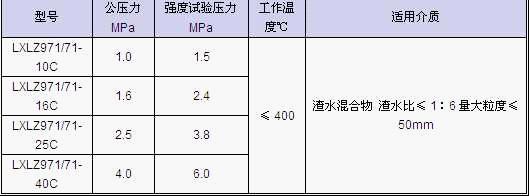

Parameters |
Size Chart |
Application |
|
1 clip-on two-phase flow of slag valve is factory developed new products, the product is suitable for thermal power plant ash handling system or the mining industry and other sectors of the two pipes to the stream as a lifting device.

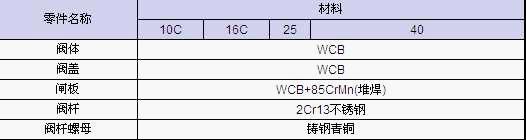

(2) the use of unilateral force the valve seal, seal not only reliable, but also to seal requirements. Body material can be cast iron, carbon steel, stainless steel and PTFE and other materials to meet the requirements of corrosion resistant, etc.
3 short length of this structure, light weight, easy installation and maintenance
4 Temperature: <400 ℃ |
|
|
產(chǎn)品外形及結(jié)構(gòu)尺寸示意圖
 |
1, hand wheels, handles and drive mechanism for lifting are not allowed to use, and non-collision.
2, Gate Valve should be installed vertically (ie, stem in a vertical position, the hand wheel at the top).
3, the valve with a bypass valve opens the bypass valve in the open should be preceded by (in order to balance the import and export of pressure and reduce opening force).
4, with the valve drive mechanism, according to the provisions of the product installation instructions.
5, if the valve often used switches, lubrication at least once a month |
|
